Products

Development boards, sensors, LoRa modules and power supplies, designed and made in Ahmedabad. Buy online, or talk to us about custom firmware and bulk orders.

01Shop

Every board is assembled and tested in our Ahmedabad workshop. Buy online from the ThingsLinker store.

Visit the store

Module variants

Three variants cover the most common LoRaWAN deployment patterns. All share the same base hardware and firmware architecture.

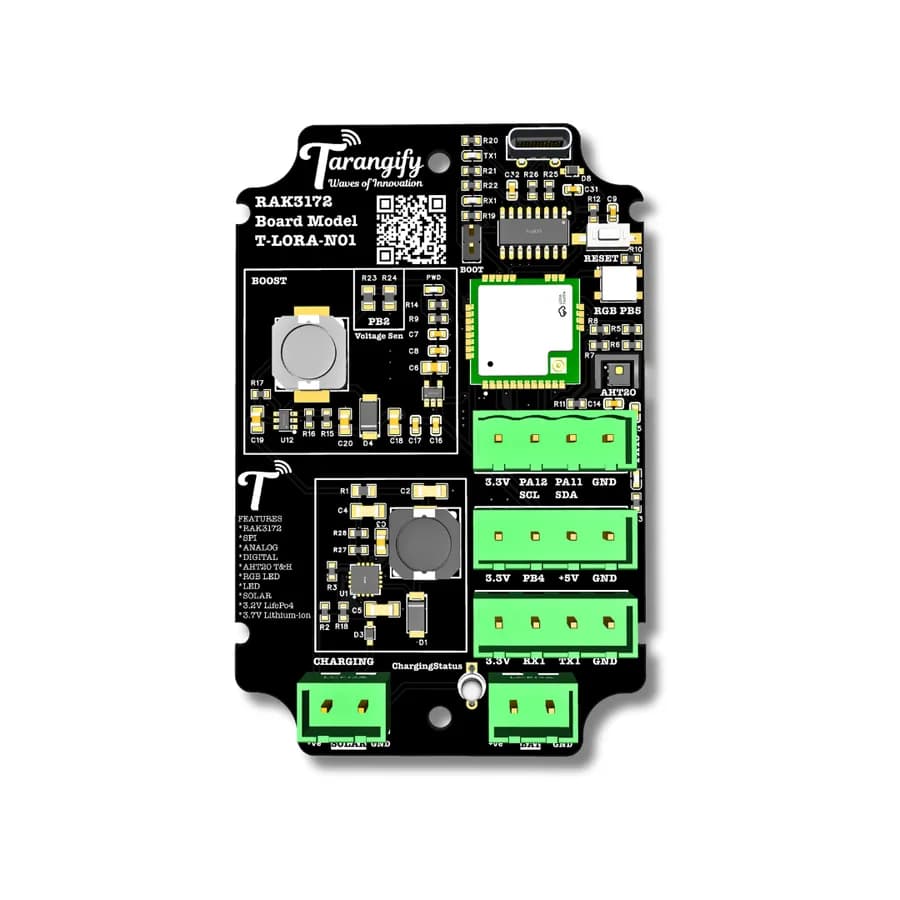

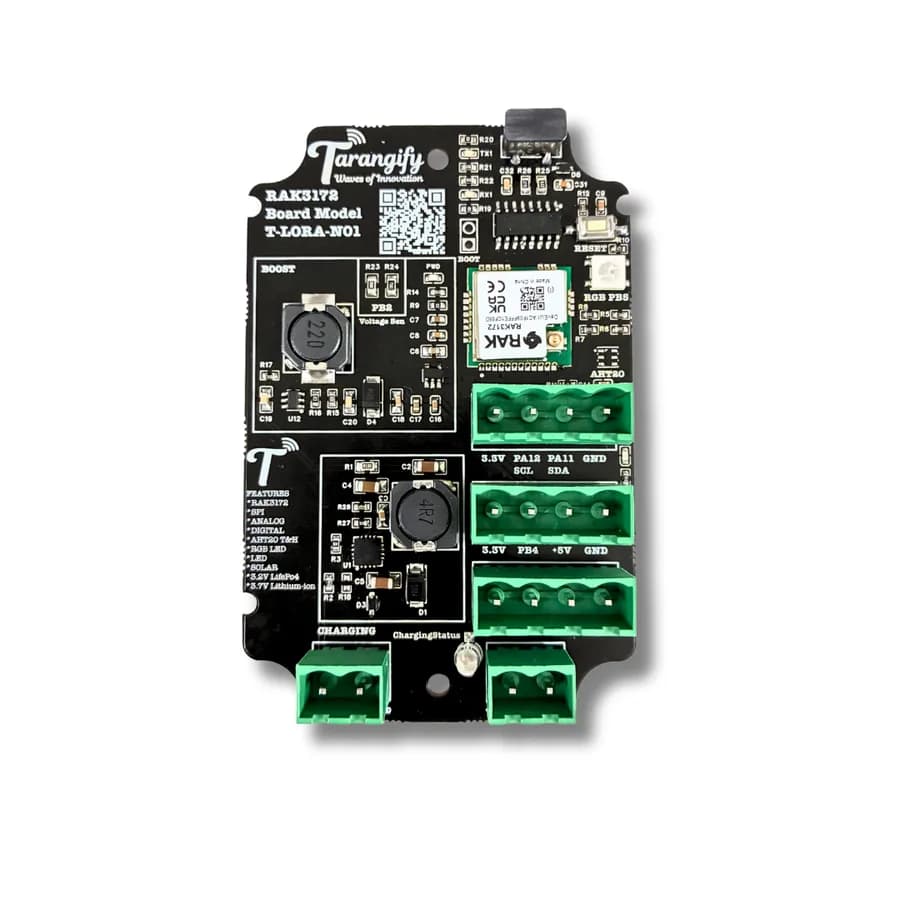

T-LORA-N01

T-LORA-N01

Standard LoRaWAN sensor node

The base module in the Tarangify line. RAK3172-powered, with onboard temperature and humidity sensing. Drop-in compatible with standard LoRaWAN gateways.

RAK3172LoRaWANTemperatureHumidity

Specifications

MCU
RAK3172 (STM32WLE5)
Protocol
LoRaWAN Class A/C
Frequency
IN865 / EU868 / US915
Sensors
Temperature, Humidity
Power
3.3V, battery-optimised
Status
In production
T-LORA-N01-GPS

T-LORA-N01-GPS

LoRaWAN node with GPS tracking

Extends the N01 with an integrated GPS module for asset tracking and geo-fenced applications. Same compact footprint, adds location data to every uplink.

RAK3172LoRaWANGPSAsset tracking

Specifications

MCU
RAK3172 (STM32WLE5)
Protocol
LoRaWAN Class A
GNSS
GPS + GLONASS
Accuracy
2.5m CEP
Power
3.3V, battery-optimised
Status
In production
T-LORA-N01-4CH

T-LORA-N01-4CH

4-channel digital/analog I/O node

Industrial variant with four configurable I/O channels for digital inputs, analog sensors, or pulse counting. Suited for industrial monitoring and utility metering.

RAK3172LoRaWAN4-channel I/OIndustrial

Specifications

MCU
RAK3172 (STM32WLE5)
Protocol
LoRaWAN Class A/C
I/O
4× digital/analog, configurable
Input range
0–10V / 4–20mA
Enclosure
DIN-rail ready
Status
In production

Under the hood

Engineering decisions that matter

RAK3172 core

Every Tarangify module uses the RAK3172, which integrates an STM32WLE5 SoC with a sub-GHz radio. Low power, proven in the field, AT-command and custom firmware support.

LoRaWAN certified

All variants support LoRaWAN 1.0.3 / 1.1 with OTAA and ABP join, adaptive data rate, and confirmed/unconfirmed uplinks. Compatible with TTN, Chirpstack, and private LNS.

In-house manufacturing

Modules are assembled and tested in our Ahmedabad workshop. Every unit passes functional RF and sensor verification before leaving the floor.

Custom firmware available

Need a specific payload format, sensor, or duty cycle? We write firmware against your requirements. Source or binary delivery, OTA update support included.

Need a custom variant or bulk order?

We manufacture in Ahmedabad and can customise firmware, add sensors, or adjust form factor for your deployment. Get in touch with your requirements.
